A voltage stabilizer is a kind of power electronic equipment used to ensure the power supply quality of sensitive equipment in the power grid when the power supply voltage and frequency of the power grid are unstable, serious voltage distortion, flicker, drop, and other comprehensive voltage quality conditions.
power stabilizer for home_mobile home stabilizers
The voltage stabilizer adopts the AC-DC-AC principle, which can completely solve all problems except power failure (such as frequency drift, waveform distortion, surge, sinking, transient overvoltage, voltage drop, noise interference, etc.), Can provide you a power supply environment with extremely stable voltage and frequency, and extremely pure waveform.
It overcomes the defect that the parameter regulated power supply cannot stabilize the frequency, and is an ideal substitute for the parameter regulated power supply.

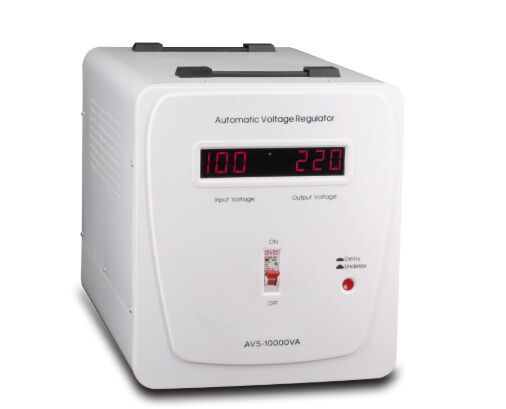

(1) Display: Dual digital displays display input voltage and output voltage
(2) Indicators: Three LEDs display AVR status: green working, yellow low voltage
Protection, red overvoltage protection.
(3) Transformer: Toroidal transformer
(4) Input voltage 140 ~ 260Vac/110 〜 260Vac/100 〜 280Vac/70 〜 140Vac
(5) Input frequency 50/60Hz
(6) Output voltage: 220/230 AC
(7) Output accuracy: +-8%
(8) Efficiency: 98%
(9) Protection: overvoltage/undervoltage/overheating/short circuit/overload
Protection (optional); surge/spike protection (optional).
(10) Delay time: 6 s (or 180 s)
(11) Working temperature: -5°C~ 40°C
(12) Storage temperature: -10°C~50°C
(13) Operating relative humidity: 20% ~ 90%, non-condensing
(14) Compliance with standards: Ce certification
(1) Display: dual digital display to display input voltage and output voltage, the meter display
Or LED display optional
(2) Indicators: Three LEDs display AVR status: green working, yellow low voltage
Protection, red overvoltage protection.
(3) Transformer: Toroidal transformer
(4) Input voltage: 140 ~ 260Vac
(5) Input frequency 50/60Hz
(6) Output voltage: 220/230 AC
(7) Output accuracy: +-3%
(8) Efficiency: 98%
(9) Protection: overvoltage/undervoltage/overheating/short circuit/overload
Protection (optional); surge/spike protection (optional).
