1. Maximum voltage stabilization range: input rated voltage value ±15%.
2. The highest voltage stabilization accuracy: the voltage output error value after stabilization is less than ±1%.
3. Strong overload capacity: It can allow more than 150% of instantaneous overload without causing great voltage drop.
4. The fastest response time: the speed of voltage stabilization is less than 0.1 second.
5. The highest output efficiency: the output rate from no load to full load is as high as 98% or more.
6. Adopt single module design: easy to replace parts and components.

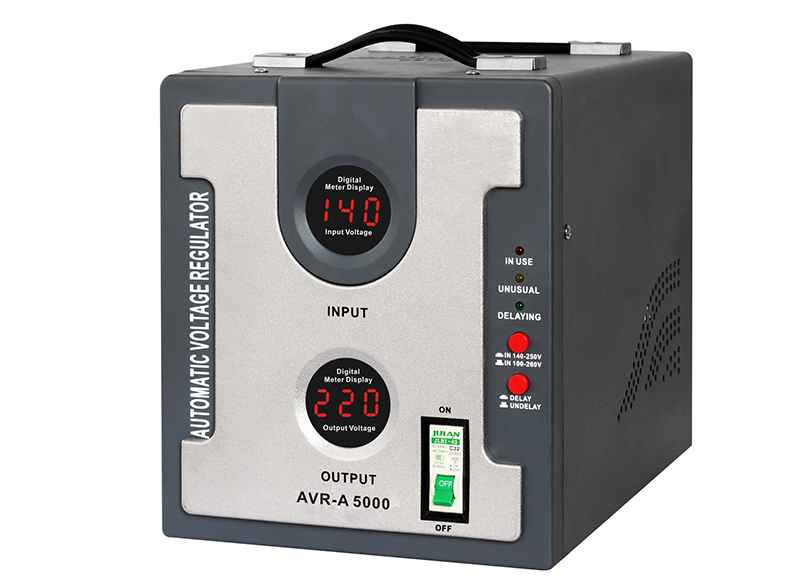

5kva single phase voltage stabilizer
7. The main voltage regulator adopts H-grade material: it can extend the life of the machine.
8. LED displays the status of the whole machine.(10000W voltage stabilizer for home)
9. No fuse switch hidden type: to prevent accidental damage and shutdown.
10. The PC board uses double-layer glass fiber: it can prevent poor contact and increase the life.
11. Hidden switch safety shield: It can prevent damage during transportation or no output voltage caused by human error.
12. The central axis of the main voltage regulator is made of aluminum material: it can prevent loosening and help heat dissipation.
1. Over-voltage protection function: If the abnormal voltage exceeds the voltage regulation range, the stabilizer will automatically turn off the output voltage in this function to prevent the abnormal high-voltage from directly entering the machine and burning the computer board.
2. Over-low-voltage protection function: Over-low voltage can cause abnormal operation of automated machinery and increase the defective rate of processed products.
3, R.S.T under-phase protection: During normal operation of the machine, if any phase line of the external power is suddenly cut off, the voltage stabilizer will immediately stop power supply and light up a red light to ensure the safe use of electricity and prevent the machine from causing major damage.
4. Instantaneous power failure delay protection: When the power is turned off and then the power is turned on, it is most likely to cause major damage to the mechanical equipment. This function can prevent the impact of the momentary power on and ensure the safety of the machinery.
5. Overload protection function: If the mechanical equipment exceeds the rated capacity of the voltage stabilizer, the voltage stabilizer will turn off the output power to protect the machine.
three-Phase Automatic Voltage Stabilizer For Home
6. Short circuit protection function: When there is a short circuit at the output of the voltage stabilizer, the voltage stabilizer will automatically cut off the power supply to protect the unit
7. Bypass switch switching function: This switch is related to regular maintenance by engineering personnel, or used in maintenance services, and does not delay mechanical production time and affect the work.
8. Output voltage adjustable function: The output voltage of the stabilizer can be adjusted by ?0% up and down according to the user's needs to meet the needs of various machinery. The multi-purpose function becomes a good helper for one unit that can be used for several units, saving unnecessary expenses
9. Adopt CPU monitoring function: make any function of this machine more accurate.
10. AVR boot self-test function: it can prevent the power output immediately after booting to ensure the correctness of the output voltage.
11. Separate voltage stabilization design function: the unbalanced three-phase power input will easily cause the automatic machinery to operate abnormally. The voltage stabilizer can achieve three-phase balanced output through the separate design.
Fast response speed 12-bit high-speed AD acquisition, 64 points per cycle acquisition, single-chip computer for digital processing calculation, electronic module rapid compensation
Multiple adjustment methods can be set Coherent: When setting coherent, AD collects the true RMS value of A, B, C three-phase voltage at the same time for average calculation, and gives instructions for compensation, which can effectively improve the unbalance of three-phase voltage
Sub-adjustment: When setting the sub-adjustment, the three-phase voltage is adjusted separately to ensure that the three-phase voltage is within the accuracy range, especially suitable for single-phase loads
Automatic judgment: automatic analysis by microcomputer should be coherent or sub-tuned
Advanced measurement technology 12-bit AD acquisition, single-chip microcomputer for digital filtering and true RMS calculation
The control is accurate and error-free. The perfect coordination of large-scale programmable logic devices and single-chip microcomputers
Humanized interface Various indicators (output voltage, voltage stabilization accuracy, protection function) can be set through the touch keys of the operation panel
The output waveform is distortion-free and non-contact zero-crossing switch switching, the same frequency, phase lock, sine wave superposition compensation principle
Resistance to harmonic interference, true RMS voltage detection
Wide load range, resistive, capacitive and inductive loads can be adapted
Slow start and shock resistance, with the function of stabilizing first and then outputting
Full protection functions. When overvoltage or undervoltage occurs, it can be protected within 1 second or uninterrupted and automatically switched to bypass operation, and it has complete phase loss, overload, short circuit protection and sound and light alarm functions after failure
