Modified sine wave power inverter charger EPI series-SCIENTEK ELECTRICAL

MODEL	EPI-1000	EPI-1200	EPI-1500	EPI-2000	EPI-3000	EPI-3000 PLUS
power capacity	1000VA	1200VA	1500VA	2000VA	3000VA	3000VA
DC input
input voltage	12VDC/24VDC/48VDC/72VDC(factory set)
input voltage range	9.6-15V( for 12V standard)
Idle Current(@12V)	0.21A	0.43A	0.43A	0.47A	0.54A	0.54A
Efficiency	90%	90%	90%	90%	90%	90%

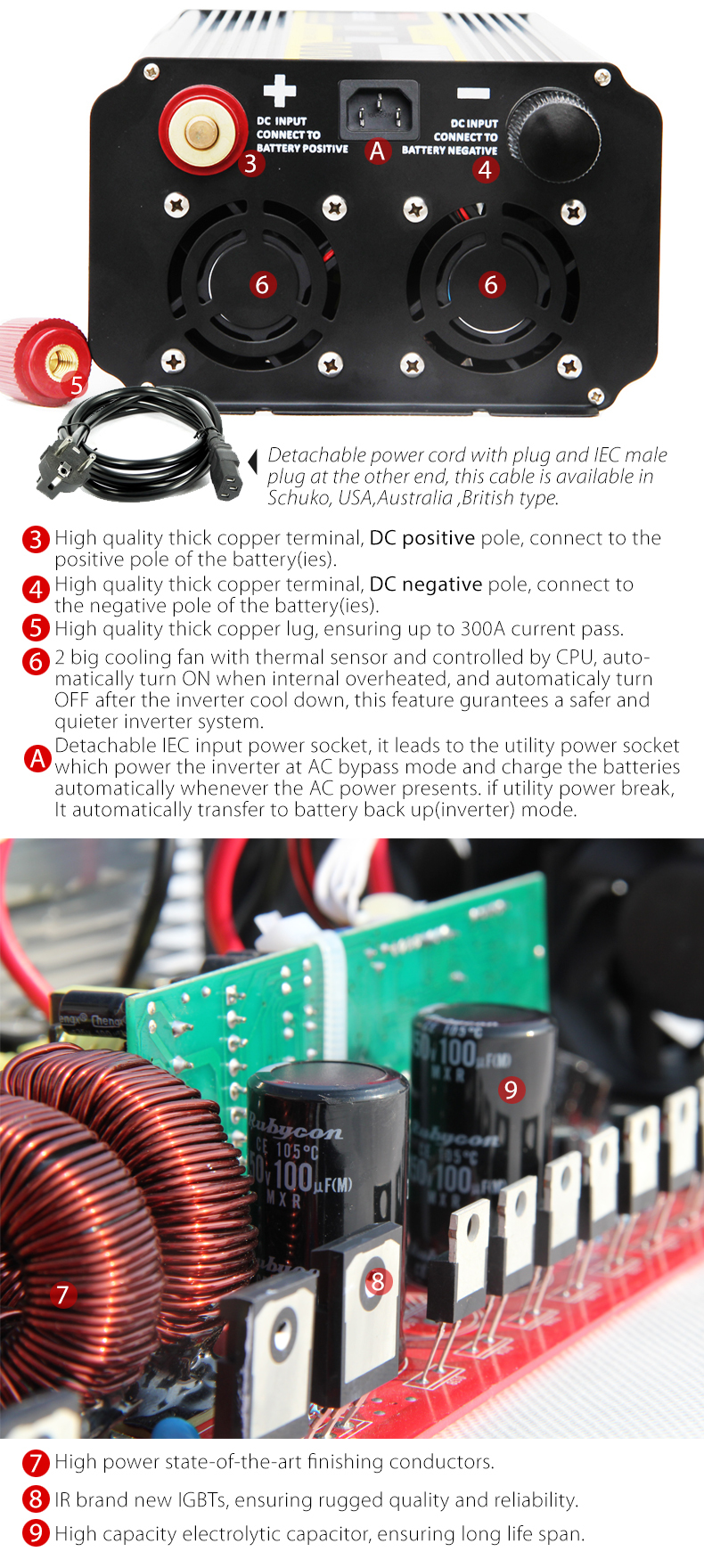

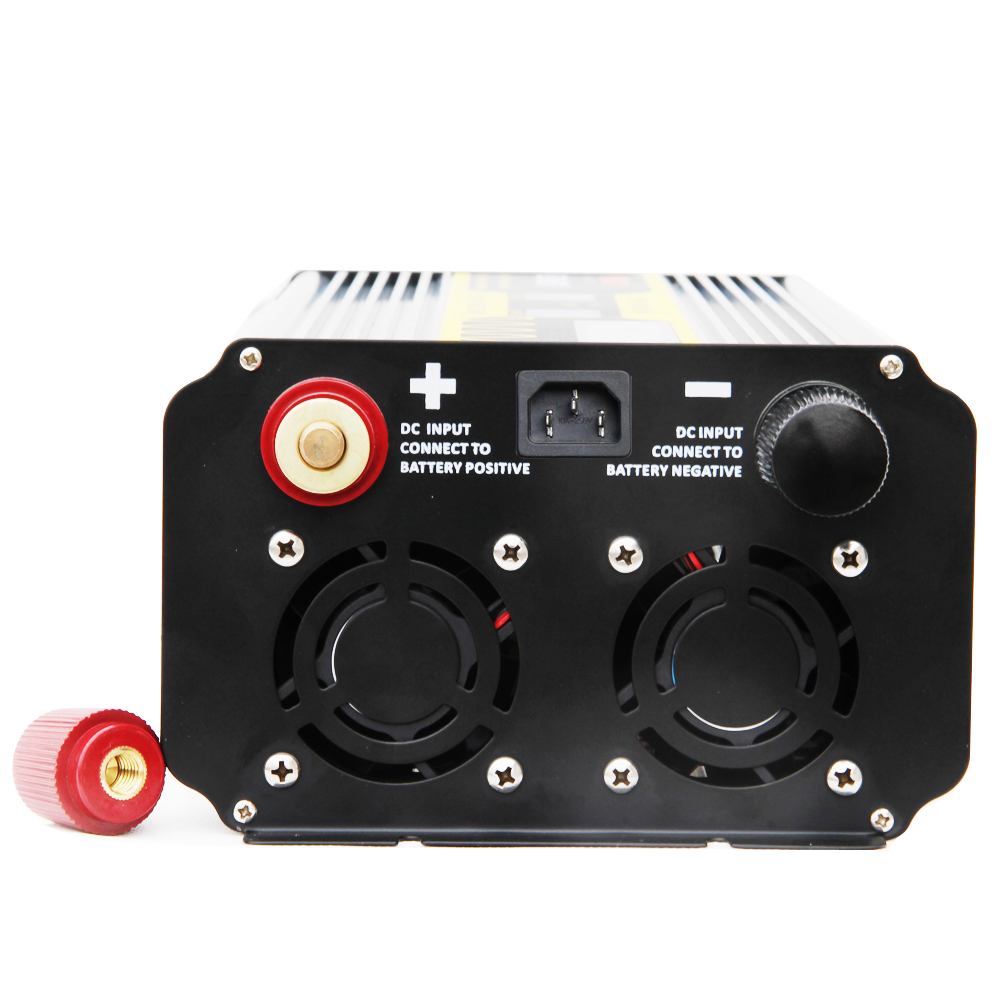

Input connector	Red and black DC input terminals
AC input
input voltage range	90-140VAC/175-265VAC
Input connector	Detachable power cord
Charger	3 stage intelligent charger 22A maximum
UPS transfer time	10 ms(typical)
AC output
Output voltage	110V/220VAC(factory set)
Output voltage range	110V/220VAC±10%
continuous power	800W	1000W	1200W	1600W	2400W	2400W
surge power	1600W	2000W	2400W	3200W	4800W	4800W
output wave	Modified Sine Wave
output frequency	50/60Hz

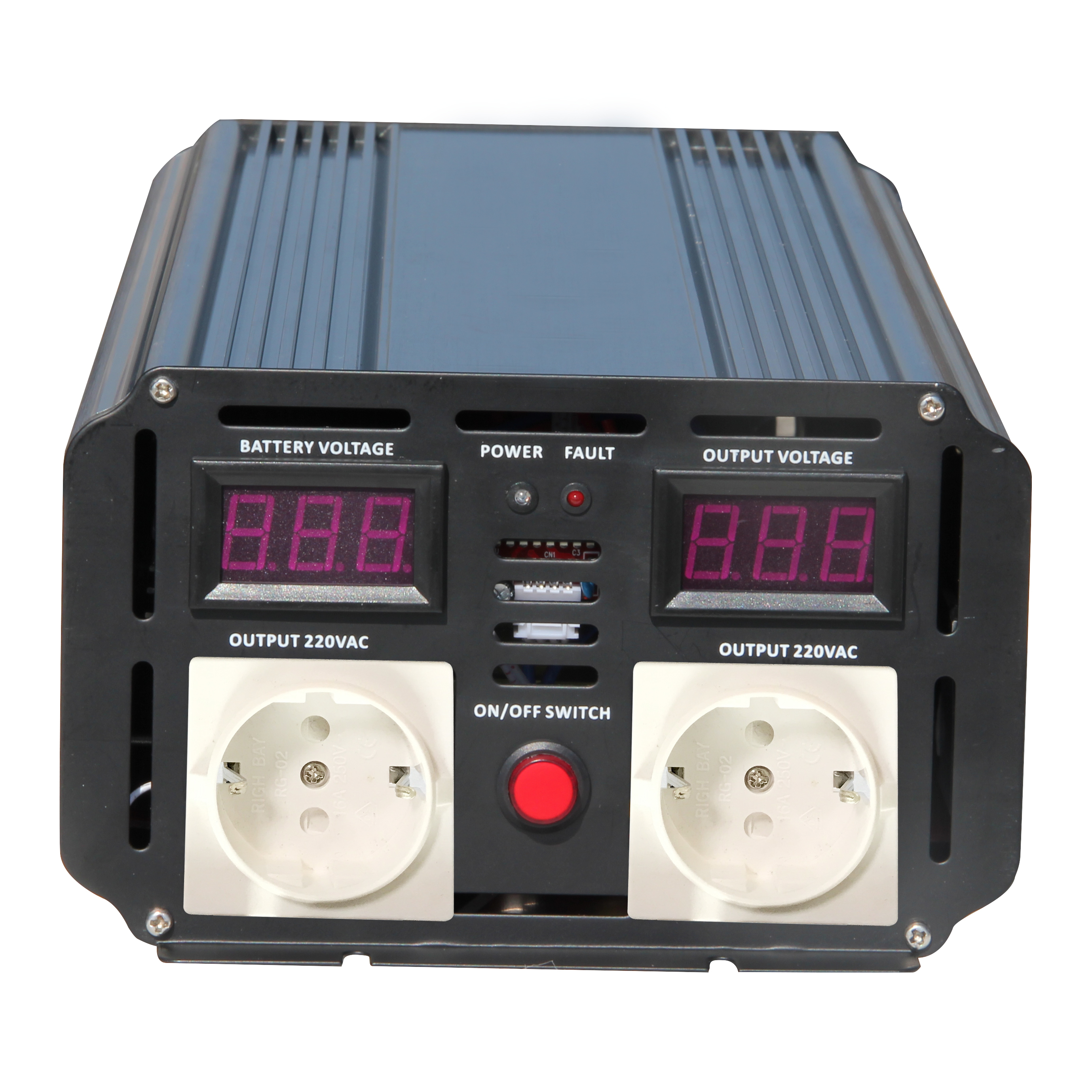

output receptacle	Multinational Socket
Protection
input DC under voltage	10V±0.5VDC
input DC over voltage	15.5V±0.5VDC
overload	auto shut down
DC polarity reverse	fuse protection
short circuit	auto shut down
over heat	auto shut down
Audible Alarm	input DC under/over voltage, fault, overload, overheat
Cooling	intelligent cooling fan
Display & Indicator

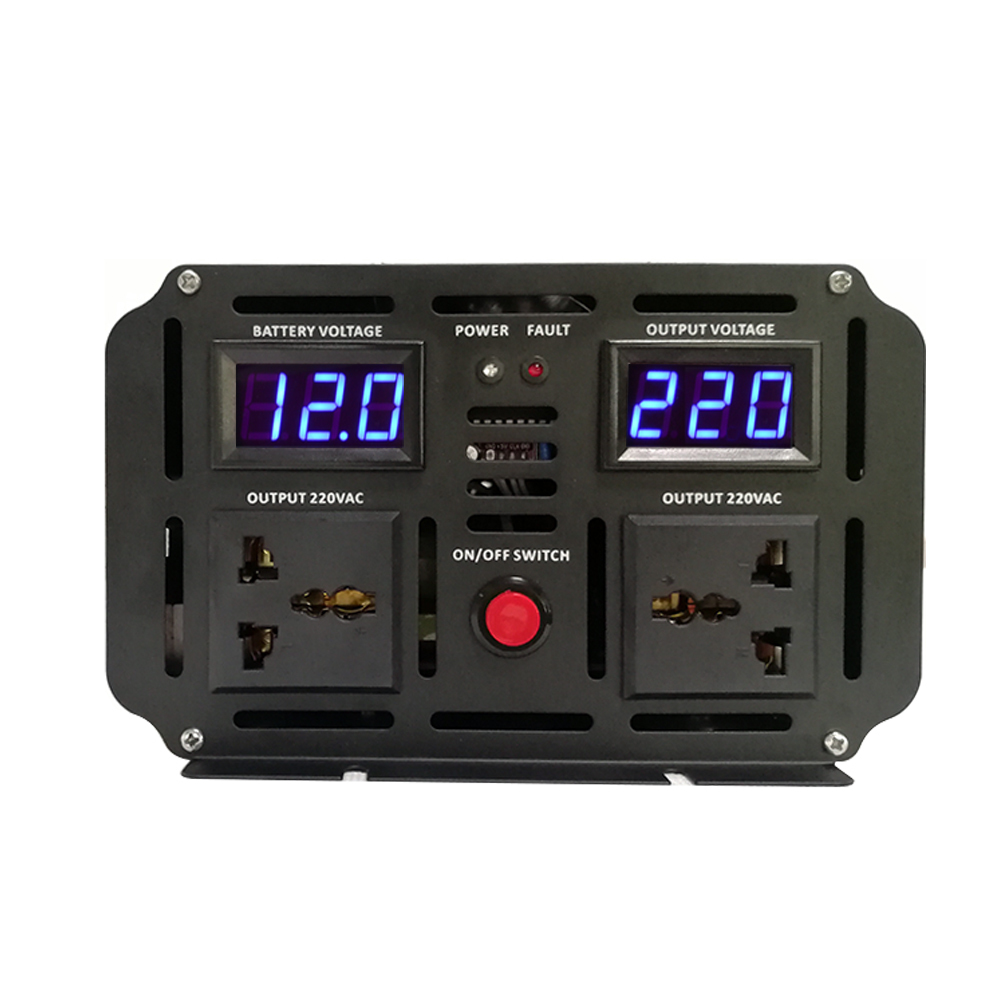

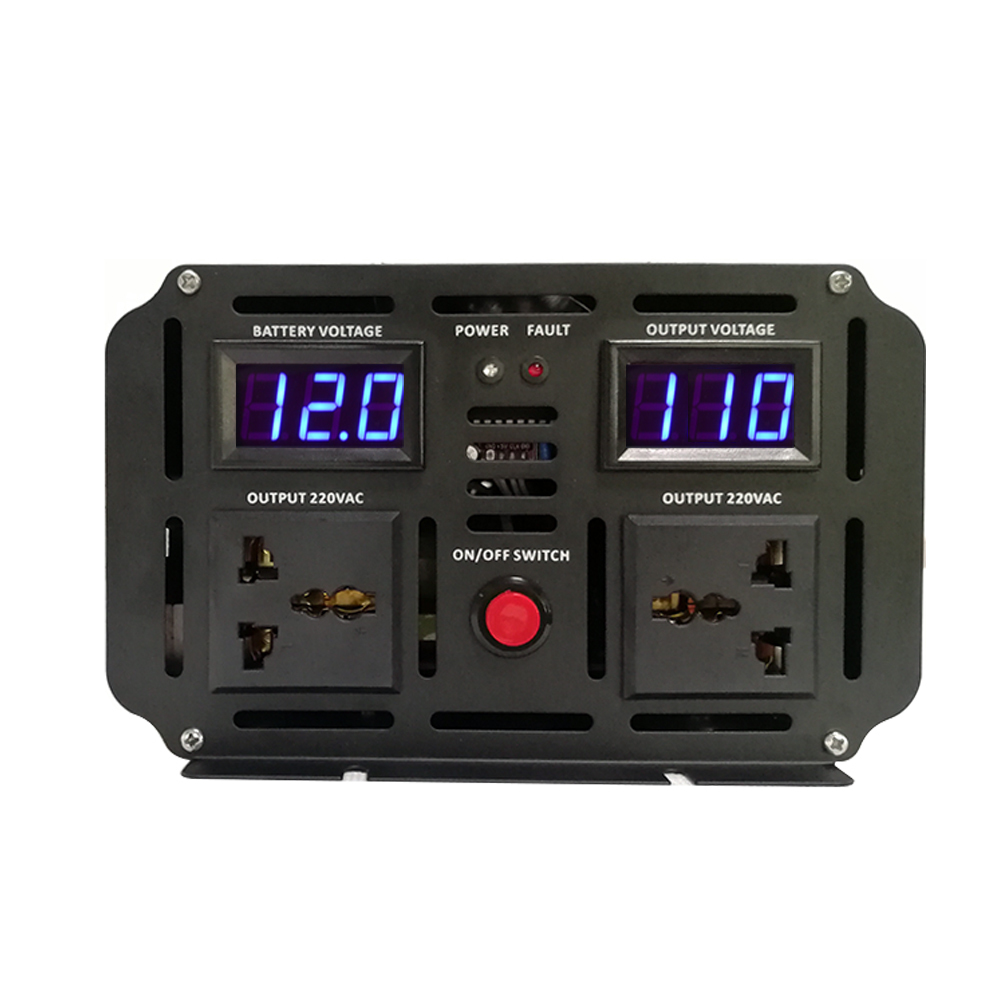

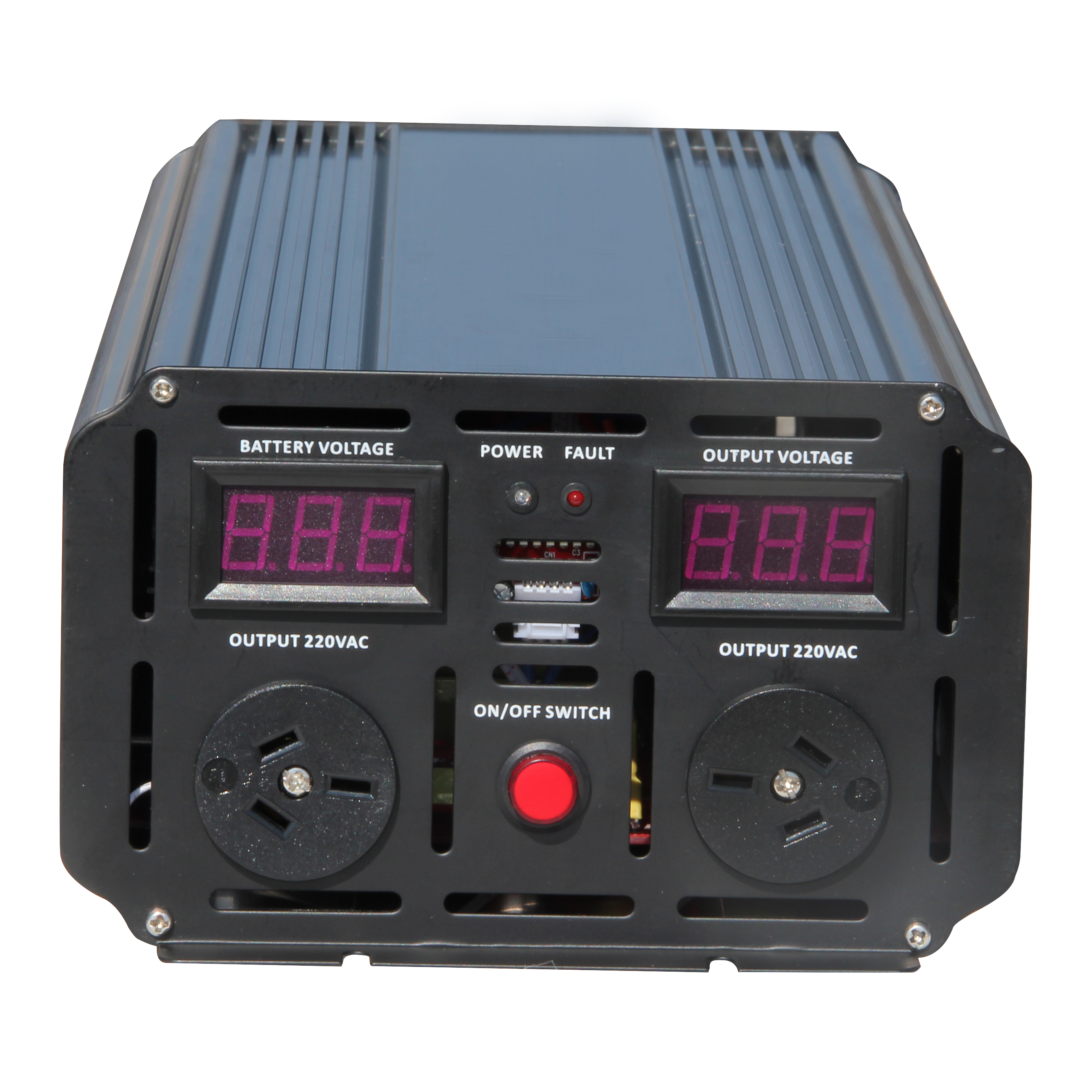

Indicator	LED indicator, Green LED glow if the device works properly, Red LED glow if the device is faulty or entering into protection mode.
LCD displayer	digital LCD display(optional)
Physical

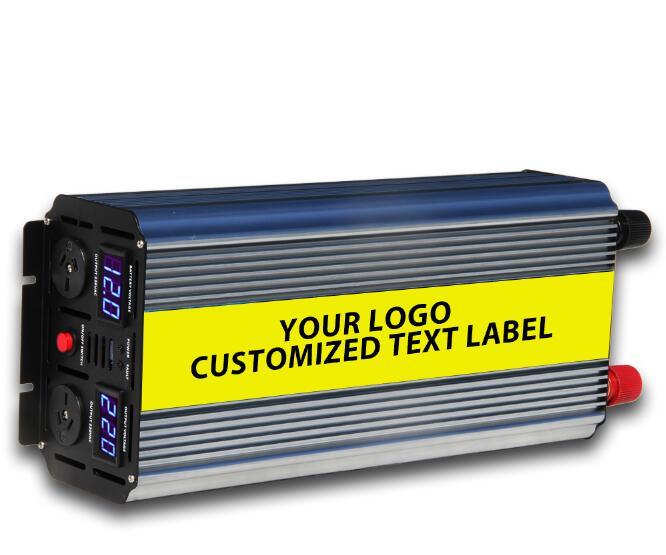

Case	anodized aluminum
Dimensions(LXWXH)mm	200x150x90	276x150x76	276x150x76	276x150x90		390X210X110
Net Weight(kgs)	1.8	1.8	2.2	2.8	3.1	5.2
