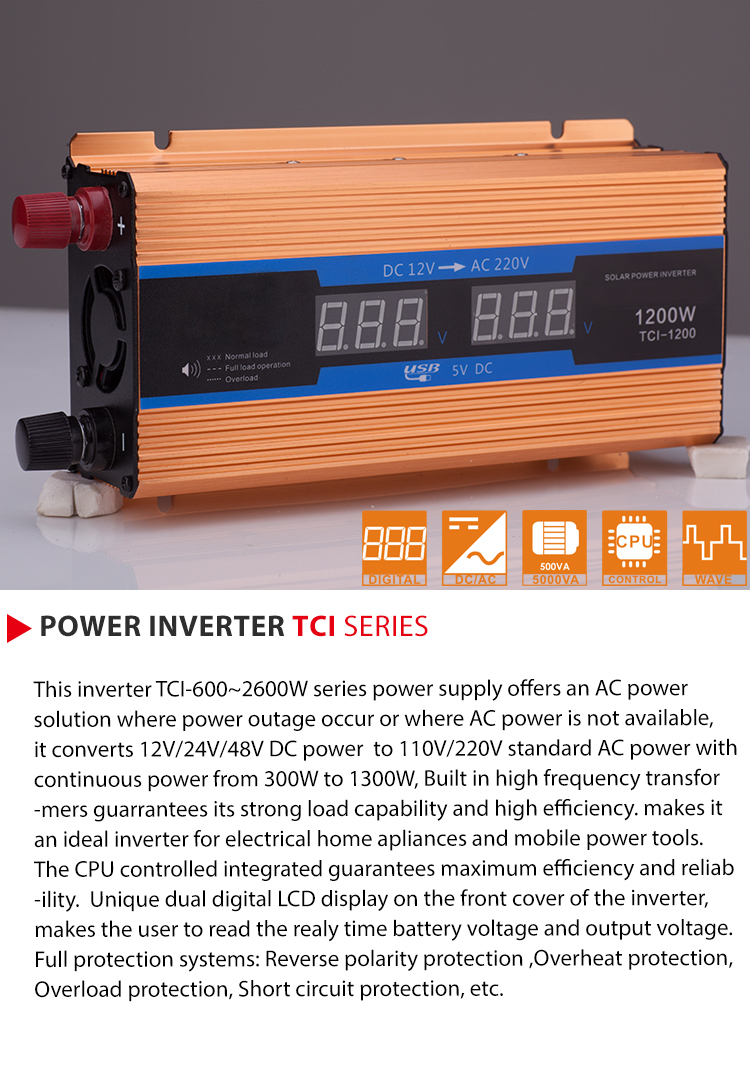

12V 24V 48V to 110V/ 220V power inverters TCI SERIES-SCIENTEK ELECTRICAL

MODEL	TCI-600	TCI-1200	TCI-1600	TCI-2200	TCI-2600
power capacity	600VA	1200VA	1600VA	2200VA	2600VA
DC input
input voltage	12VDC/24VDC/48VDC/60VDC/72VDC(factory set)
input voltage range	9-15.5V±0.5V (12V) \| 1-830V±0.5V(24V) \| 36-60V±0.5V(48V) \| 45-75V±0.5V(60V) \| 54-90V±0.5V(72V)
Idle Current(@12V)	0.15A	0.15A	0.25A	0.25A	0.30A
Efficiency	85%	85%	85%	85%	85%
Input connector	Red and black DC input terminals
AC output
Output voltage	110V/ 220VAC(factory set)
Output voltage range	110V/220VAC±10%
continuous power	350W	700W	900W	1100W	1300W
Surge power	600W	1200W	1600W	2200W	2600W
Overload Protection power	380±30W	750±40W	950±50	1150±50W	1350±50
output wave	Modified Sine Wave
output frequency	50/60Hz ±3Hz
output receptacle	Multinational Socket
USB Charger
USB Charger	1 x USB, 5V/1A
Protection
input DC under voltage	9.5V±0.5VDC(12V) \| 20V±0.5VDC(24V) \|40V±0.5VDC(48V) \| 50V±0.5VDC(60V) \|60V±0.5VDC(72V)
input DC over voltage	15.5V±0.5VDC(12V) \| 30V±0.5VDC(24V) \|60V±0.5VDC(48V) \| 75V±0.5VDC(60V) \|90V±0.5VDC(72V)
overload	auto shut down

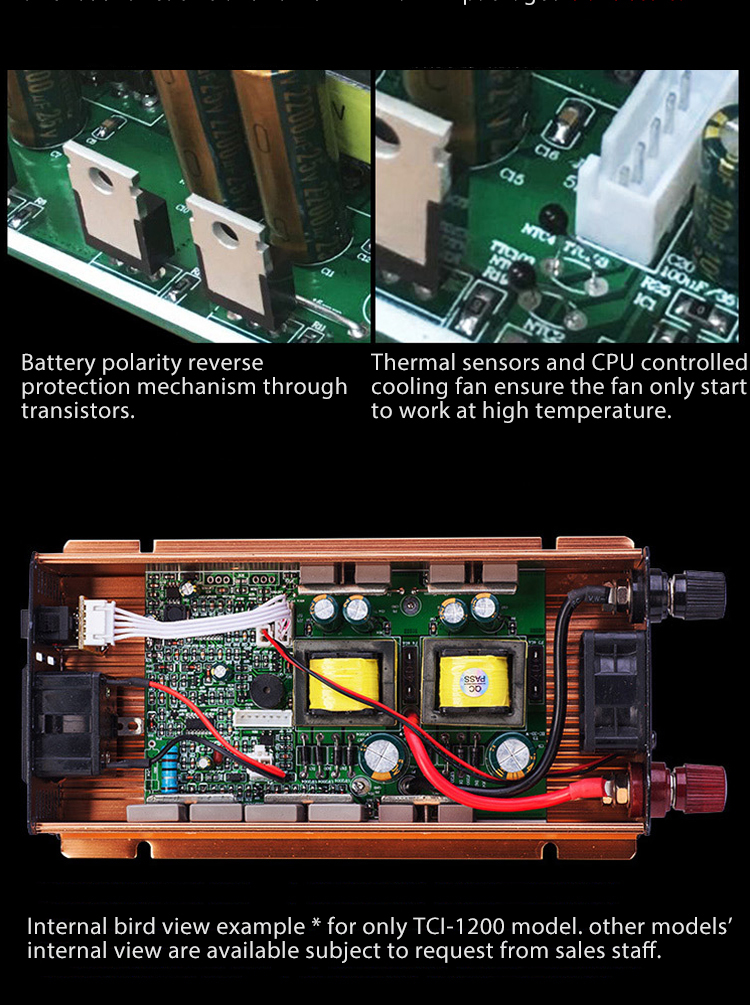

DC polarity reverse	auto shut down
short circuit	auto shut down
over heat	auto shut down
Audible Alarm	input DC under/over voltage, fault, overload, overheat
Cooling	intelligent cooling fan
Display & Indicator
Indicator	Green LED: Power, Red LED: Protection/ Fault
LCD displayer	2 x digital LED display
Physical
Case	anodized aluminum

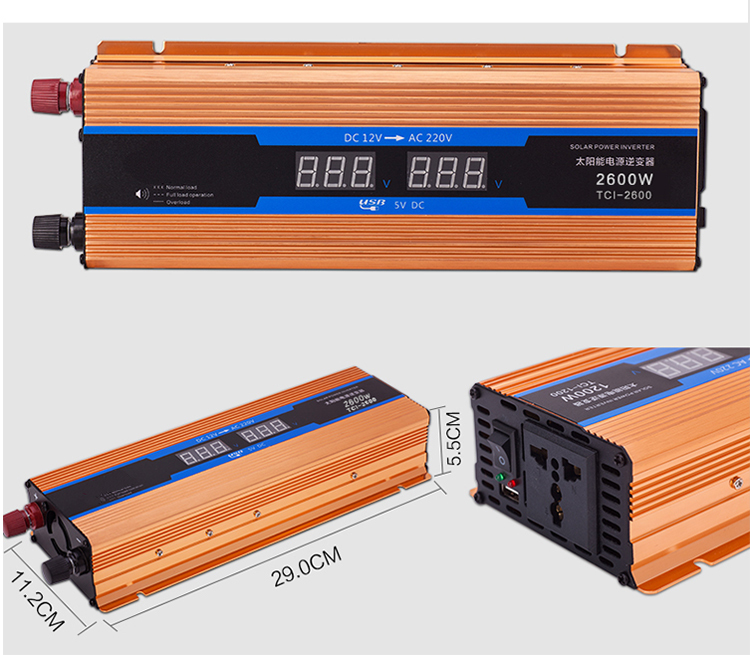

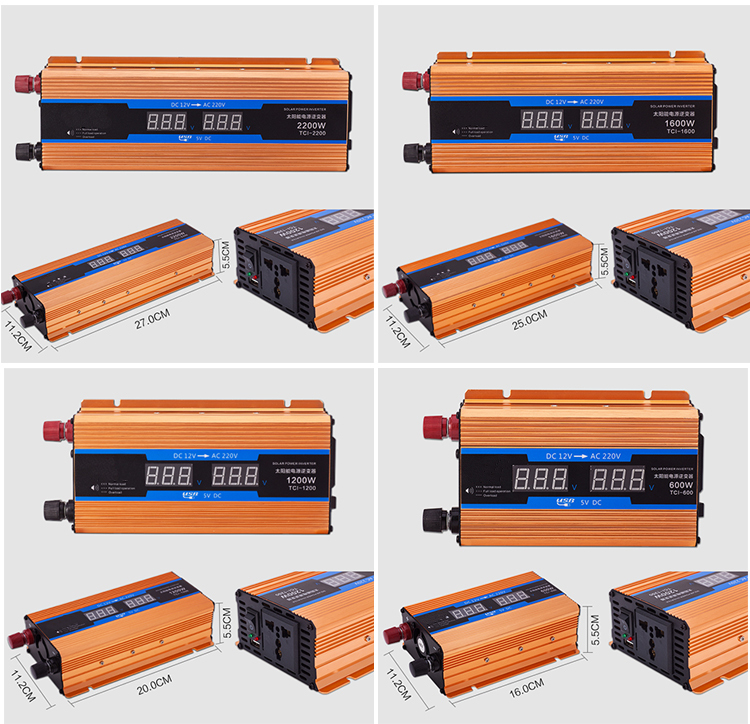

Dimensions(LXWXH)mm	16.011.25.5	20.011.25.5	25.011.25.5	27.011.25.5	29.011.25.5
Net Weight(kgs)	0.8	1	1.3	1.4	1.5
