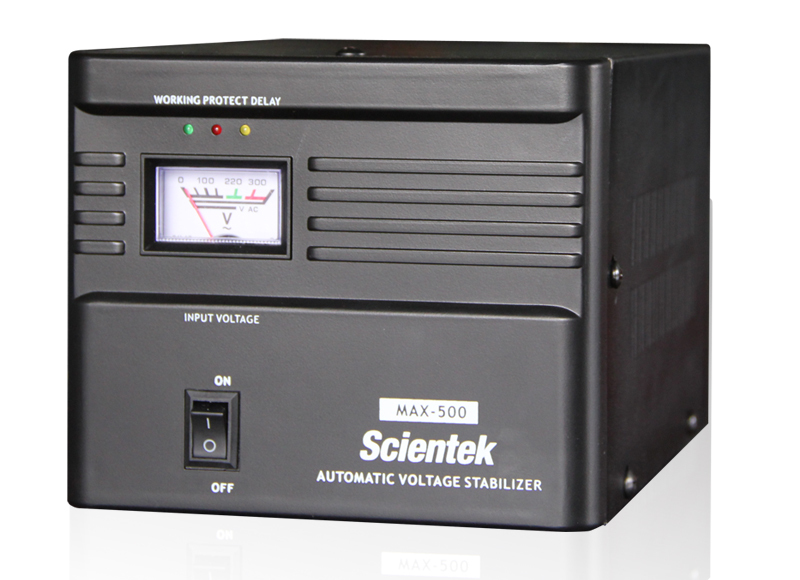

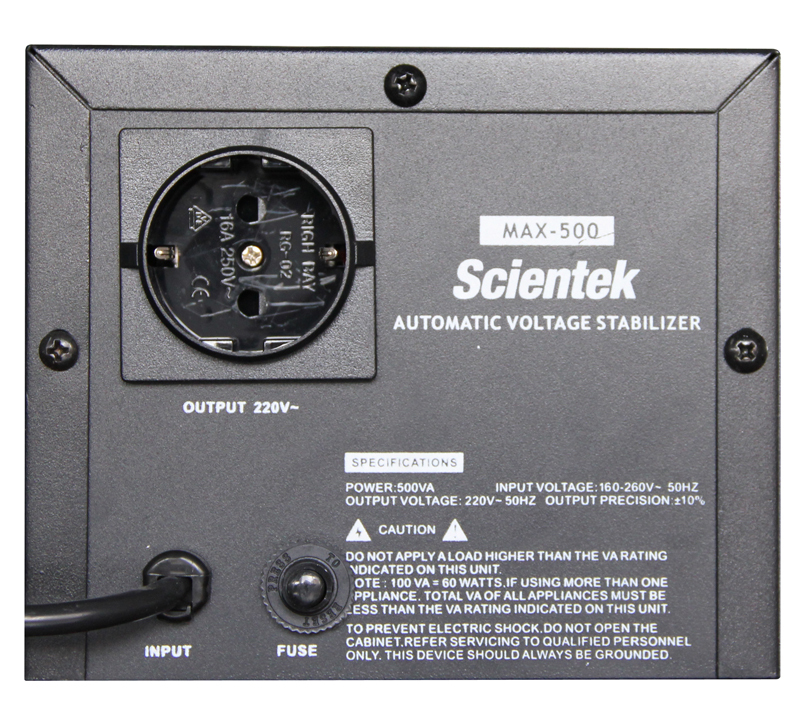

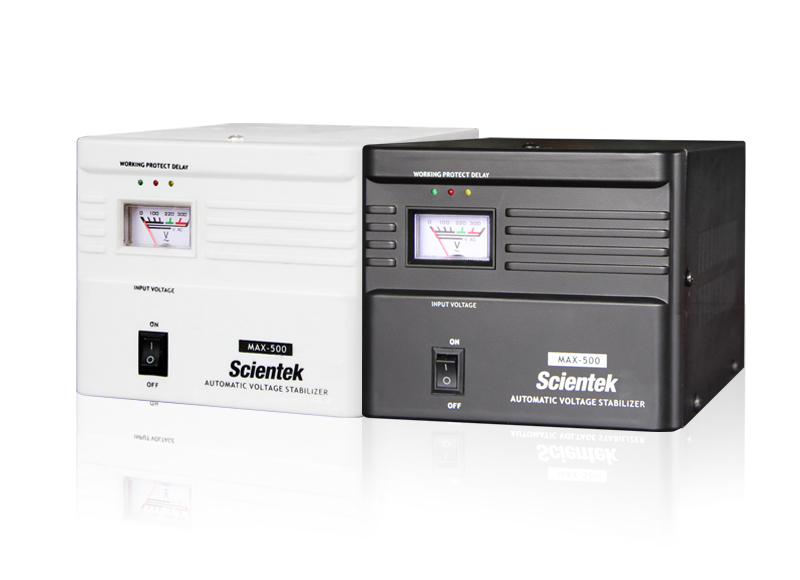

500VA-2000VA Automatic Voltage Regulator for light duty appliances MAX SERIES-SCIENTEK ELECTRICAL

Wall mount relay type Automatic voltage Stabilizer AVS-P series

Three Phase SCR type Contactless high precision Automatic voltage regulator SBWZ series

AVS PRO series Automatic Voltage Stabilizer

AVS PLUS series Automatic Voltage Stabilizer

AVS Series Relay type Automatic voltage Stabilizer

3 Phase Servo Motor automatic voltage regulator stabilizer SBW Series

Servo motor Automatic Voltage Regulator SVC Series

Wall Mount Relay type Automatic Voltage Regulator AVR-WR Series

Model	MAX-500	MAX-1000	MAX-1500	MAX-2000
Nominal Power	500VA	1000VA	1500VA	2000VA
Rated Power	250W	550W	750W	1000W
Power Factor	0.6~1.0	0.6~1.0	0.6~1.0	0.6~1.0
Input
Regulation Voltage Range	160-260VAC	160-260VAC	160-260VAC	160-260VAC
Frequency	50Hz	50Hz	50Hz	50Hz
Connection Type	Power cord with plug	Power cord with plug	Power cord with plug	Power cord with plug
Output
Operating Voltage	180~255VAC	180~255VAC	180~255VAC	180~255VAC
High Cut Voltage	255V	255V	255V	255V
Low Cut Voltage	180V	180V	180V	180V
Frequency	50Hz	50Hz	50Hz	50Hz
Safety Cycle	10 Seconds	10 Seconds	10 Seconds	10 Seconds
Connection Type	1 socekt	1 socket	2 sockets	2 sockets
Regulation
Regulation %	± 10% (when input 160~260VAC)	± 10% (when input 160~260VAC)	± 10% (when input 160~260VAC)	± 10% (when input 160~260VAC)
Number of Taps	3	3	3	3
Transformer Type	Toroidal auto transformer	Toroidal auto transformer	Toroidal auto transformer	Toroidal auto transformer
Regulation Type	Relay type	Relay type	Relay type	Relay type
Indicators
Working	Green LED ON	Green LED ON	Green LED ON	Green LED ON
Delaying	Yellow LED ON	Yellow LED ON	Yellow LED ON	Yellow LED ON
Fault / Protection	Red LED ON	Red LED ON	Red LED ON	Red LED ON
Voltage Meter	1x volt meter	1x volt meter	1x volt meter	1x volt meter
Protection
Over Temperature	Auto Shutdown at 120 ℃	Auto Shutdown at 120 ℃	Auto Shutdown at 120 ℃	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown	Auto Shutdown	Auto Shutdown	Auto Shutdown
Breaker / Fuse	1 x5A /250VAC FUSE	1 x7A /250VAC FUSE	1 x10A /250VAC FUSE	1 x12A /250VAC FUSE
Overload	Auto Shutdown	Auto Shutdown	Auto Shutdown	Auto Shutdown
Over / Under Voltage	Auto Shutdown	Auto Shutdown	Auto Shutdown	Auto Shutdown
Machine Dimensions	190x150x130mm
Gift box dimension	230x155x145mm
