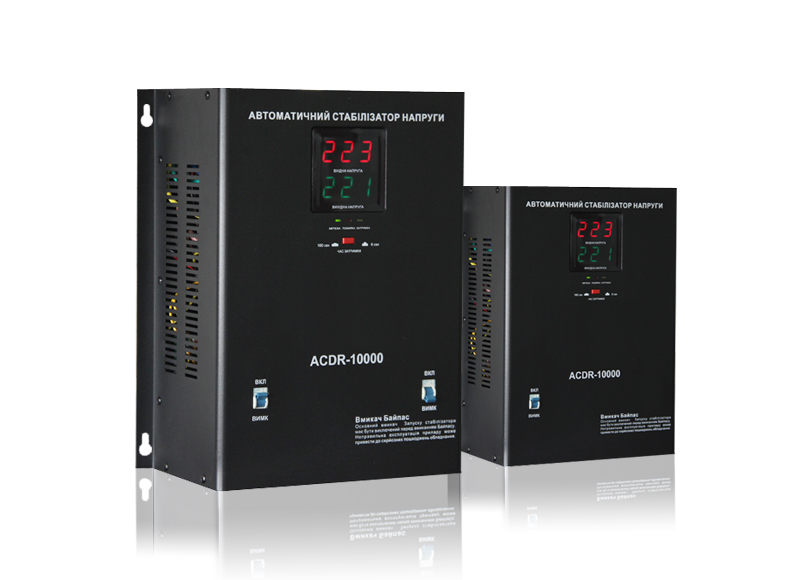

Wall Mount Relay type Automatic Voltage Regulator ACDR Series

Wall Mount Relay type Automatic Voltage Regulator ACDR Series

500VA-10KVA Wall mount Electronic Relay control, CPU control, high efficient toroidal transformer, large digital displayer.

+8618942469075 +8613928660619 +8613928660619 sales@scientekpower.com

REQUEST A QUOTE

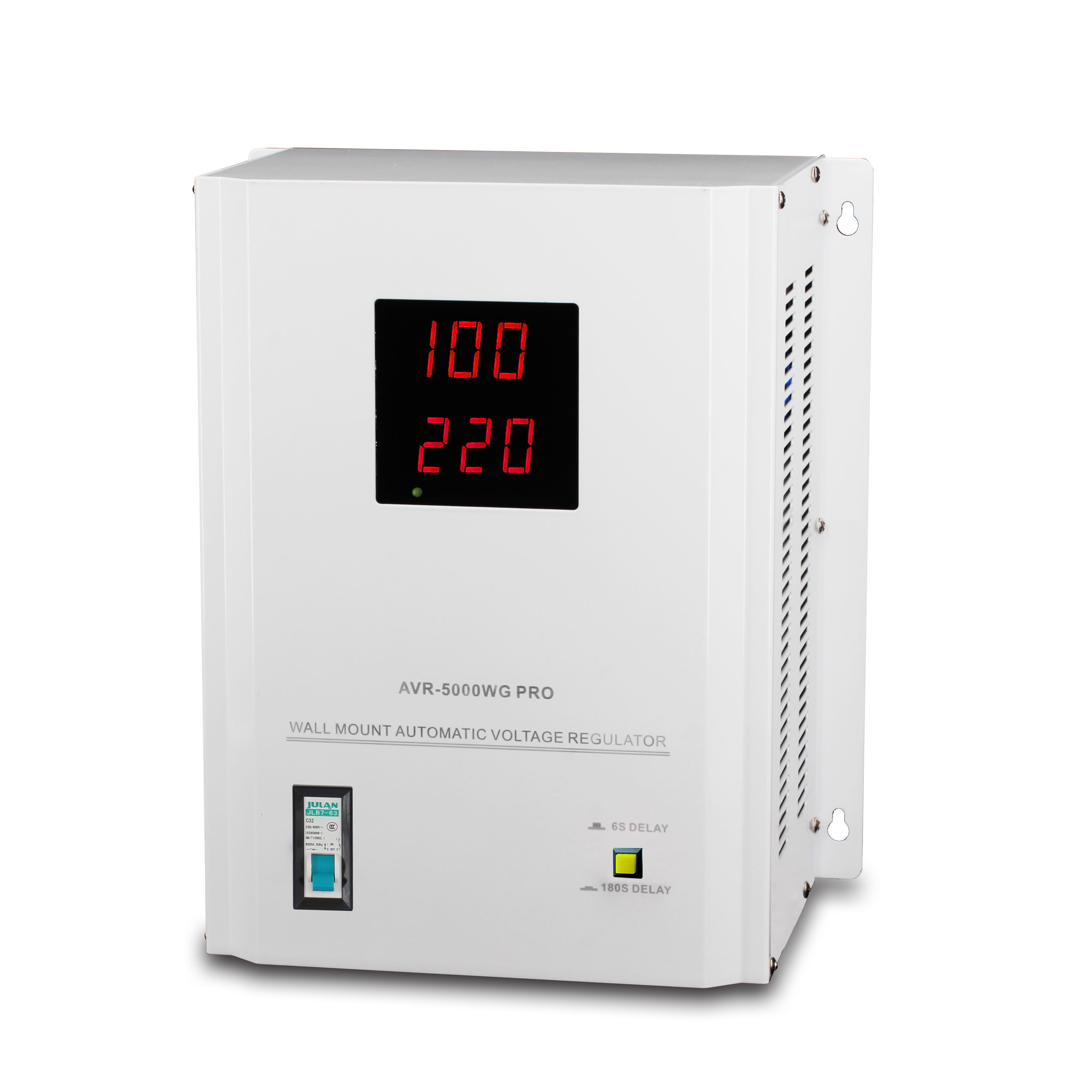

Wall mount relay type Automatic voltage Stabilizer AVS-P series

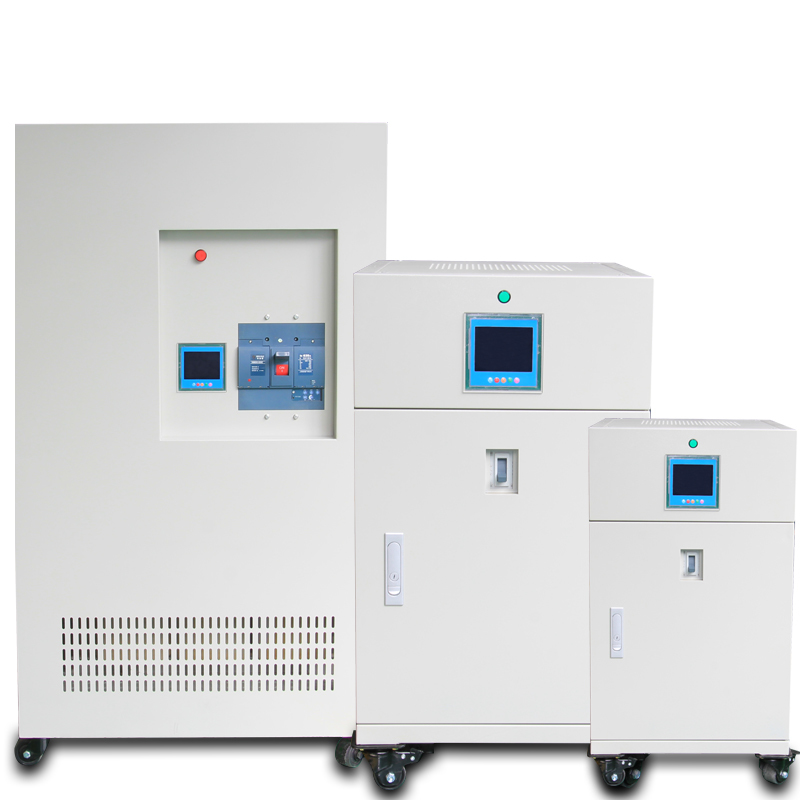

Three Phase SCR type Contactless high precision Automatic voltage regulator SBWZ series

AVS PRO series Automatic Voltage Stabilizer

AVS PLUS series Automatic Voltage Stabilizer

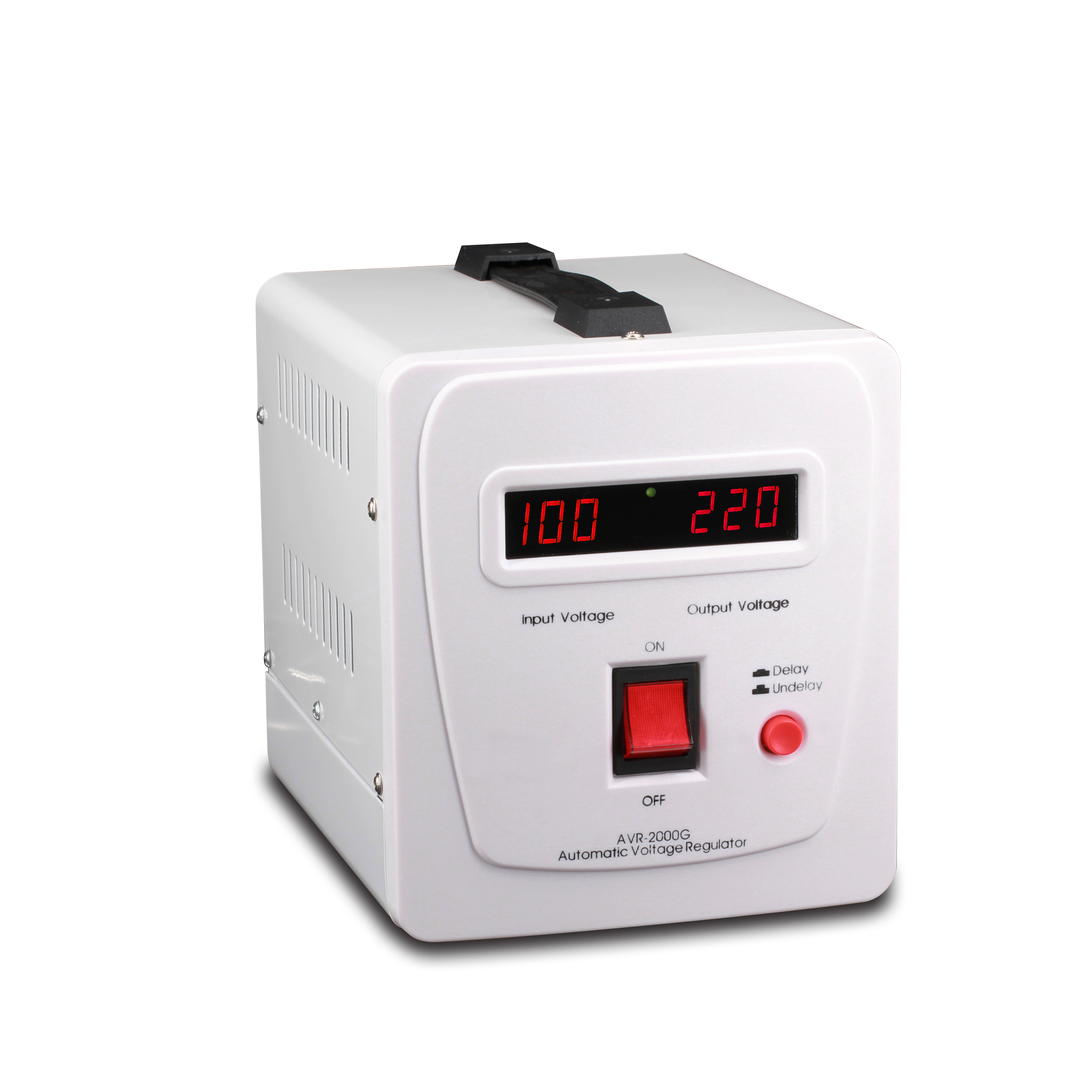

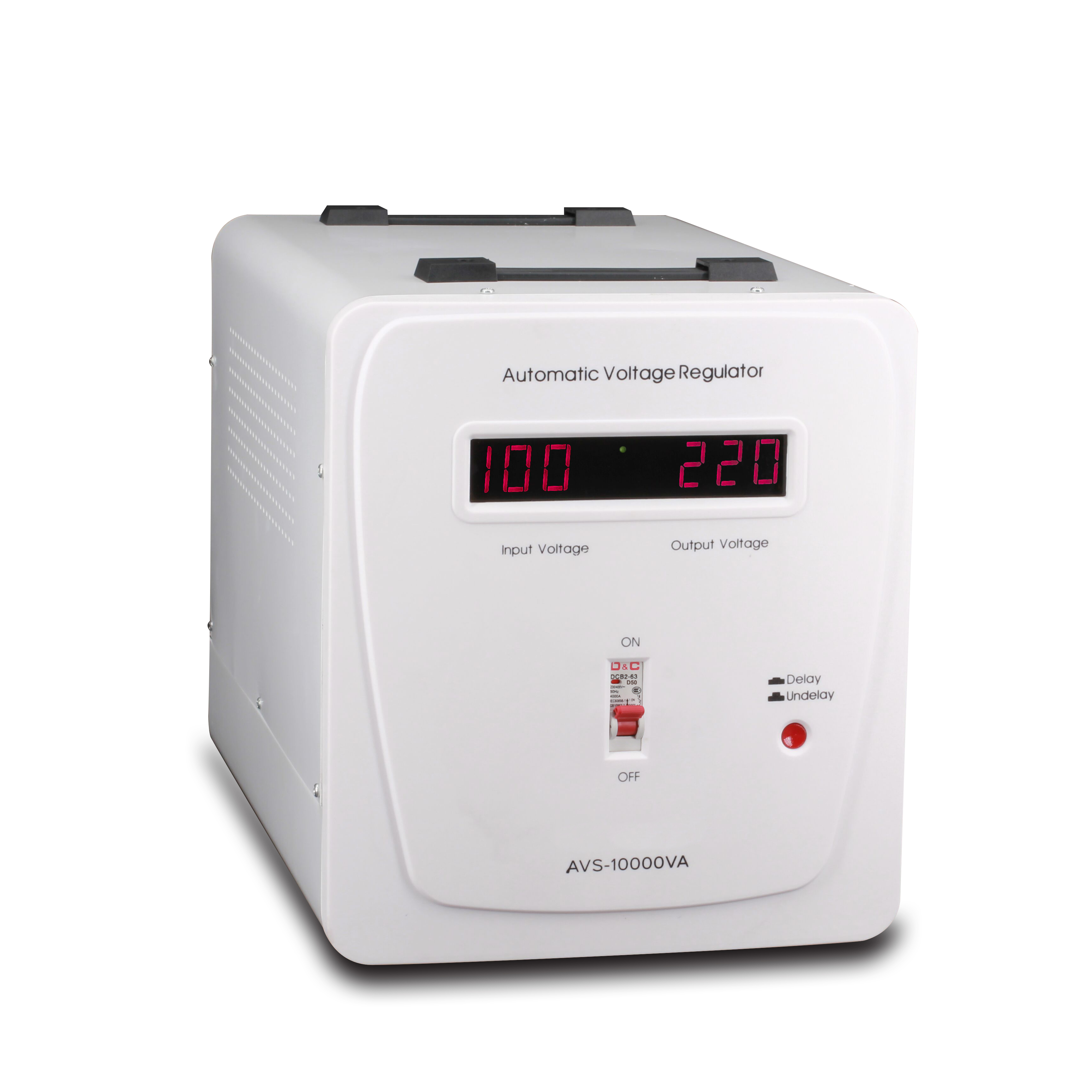

AVS Series Relay type Automatic voltage Stabilizer

3 Phase Servo Motor automatic voltage regulator stabilizer SBW Series

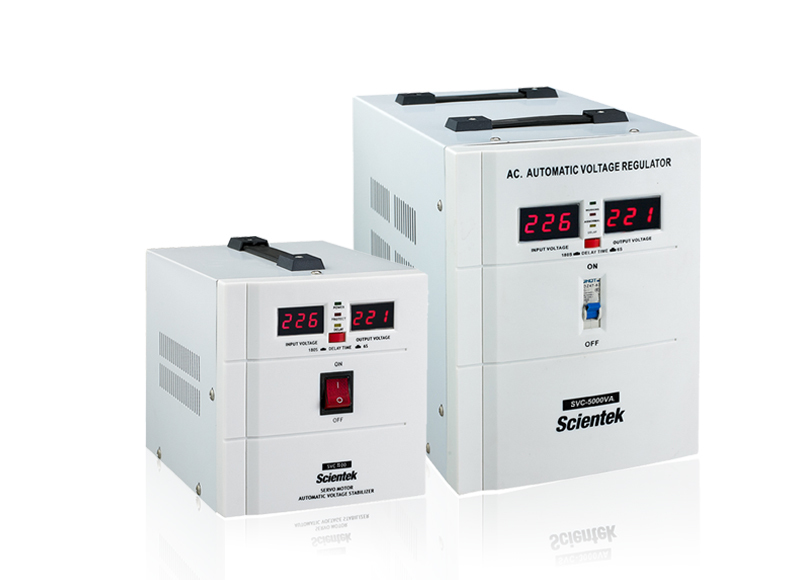

Servo motor Automatic Voltage Regulator SVC Series

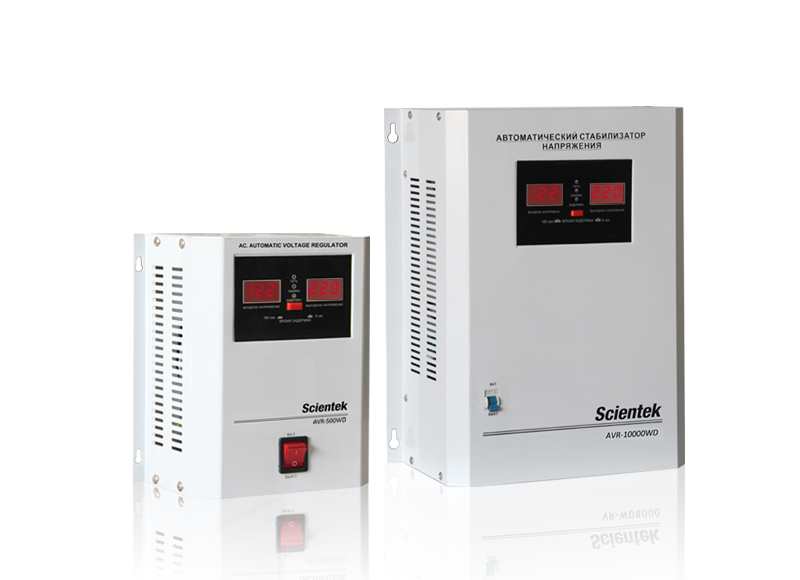

Wall Mount Relay type Automatic Voltage Regulator AVR-WR Series

Model	ACDR-500	ACDR-1000	ACDR-1500	ACDR-2000
Nominal Power	500VA	1000VA	1500VA	2000VA
Rated Power	300Watts	600Watts	900Watts	1200Watts
Power Factor	0.6~1.0	0.6~1.0	0.6~1.0	0.6~1.0
Input
Operating Voltage Range	92~280VAC
Regulation Voltage Range	100~260VAC
Frequency	50Hz
Connection Type	Power cord with plug
Output
Operating Voltage	180~255VAC
High Cut Voltage	255V
Low Cut Voltage	180V
Frequency	50Hz
Safety Cycle	6 Seconds / 180 Seconds Selectable
Connection Type	Output socket
Regulation
Regulation %	± 8% (when input 100~260VAC)
Number of Taps	7
Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators
Working	Green LED ON
Delaying	Yellow LED ON
Fault / Protection	Red LED ON
Voltage Meter	1 input & 1 LED output volt meter
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit
Breaker / Fuse	1 x5A /250VAC Circuit Breaker	1 x7A /250VAC Circuit Breaker	1 x10A /250VAC Circuit Breaker	1 x12A /250VAC Circuit Breaker
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
Physical
Dimension	180x170x100(mm)	180x170x100(mm)	210x170x100(mm)	210x170x100(mm)
Net weight	2.3kgs	3.3kgs	4.0kgs	4.9kgs

Model	ACDR-3000	ACDR-5000	ACDR-8000	ACDR-10000
Nominal Power	2000VA	5000VA	8000VA	10000VA
Rated Power	1800Watts	3000Watts	4800Watts	6000Watts
Power Factor	0.6~1.0	0.6~1.0	0.6~1.0	0.6~1.0
Input
Operating Voltage Range	92~280VAC
Regulation Voltage Range	100~260VAC
Frequency	50Hz
Connection Type	Input terminal block
Output
Operating Voltage	180~255VAC
High Cut Voltage	255V
Low Cut Voltage	180V
Frequency	50Hz
Safety Cycle	6 Seconds / 180 Seconds Selectable
Connection Type	Output terminal block
Regulation
Regulation %	± 8% (when input 100~260VAC)
Number of Taps	7
Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators
Working	Green LED ON
Delaying
Fault / Protection
Voltage Meter
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown at 120 ℃
Breaker / Fuse	1 x20A /250VAC Circuit Breaker	1 x25A /250VAC Circuit Breaker	1 x40A /250VAC Circuit Breaker	1 x50A /250VAC Circuit Breaker
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
Physical
Dimension	260x220x125(mm)	260x220x125(mm)	380x308x160(mm)	380x308x160(mm)
Net weight	6.8kgs	8.6kgs	14.2kgs	16.5kgs
